Big Wheel Backhoe Loader Industrial

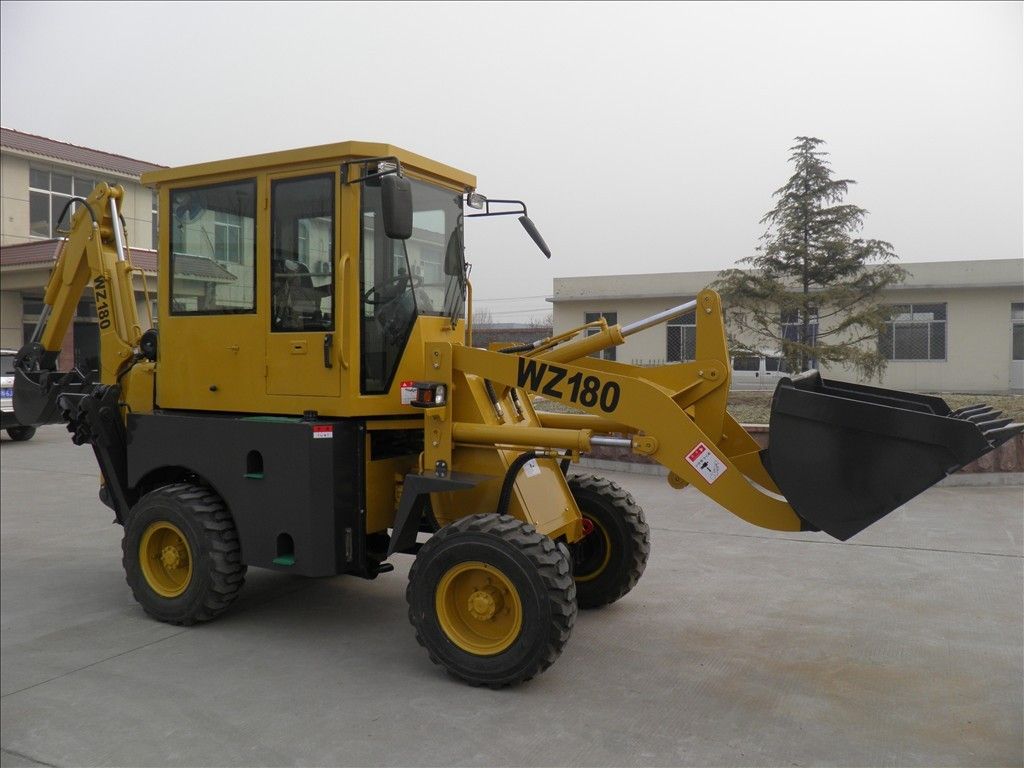

Large Image : Big Wheel Backhoe Loader Industrial

Product Details:

Place of Origin:	China
Brand Name:	SAT or OEM
Certification:	CE, ISO
Model Number:	WZ30-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Standard export package
Delivery Time:	30 days after receipt of 30% deposit
Payment Terms:	30% T/T in advance, 70% balance amount paid before shipment
Supply Ability:	50 units per month

Detailed Product Description

Bucket Capacity:	0.9cbm	Power Source:	Diesel Engine
Application:	Highway, Ports, Earthwork, Railway	Product Name:	Backhoe Wheel Loader
Type:	4 Wheel	Moving Type:	Wheel Loader

Big Wheel Backhoe Loader Industrial

Quick Detail:

1, backhoe loader, wheel loader, backhoe wheel loader

2, industrial area

3, 8260kg rated capacity, 0.9cbm bucket

Description:

-WZ30-90 backhoe loader
-Total operating weight:8260kg

-Cummins 4BT3.9-C100 engine

-Hydraulic seneing priorcontrolling
-Various safety lock system

Applications:

Backhoe loader is a widely used in highway, railway, construction, utilities, ports, mines and other construction projects of earthwork construction machinery, it is mainly used for shoveling soil, sand, lime, coal and other bulk materials, but also on the ore , hard soil, etc. for mild shoveling job

Specifications:

Items	Specification
Loading bucket capacity	0.9M³
Digging bucket capacity	0.3M³
Max digging up capacity	50KN
Bucket discharge height	2200mm
Backhoe bucket height	3450mm
Max digging depth	4100mm
Bucket slewing angle	180°
Steering angle	38°
Mini. Turning radius	4025mm
Front wheelbase	1930mm
Rear wheelbase	1830mm
Tread	2020mm
Mini. Ground clearance	400mm
Max travel speed	30km/h
Bucket lifting time	5s
Bucket lower time	2.5s
Bucket discharge time	1.2s
System pressure	22Mpa
Flow	156L/Min
Hydraulic pilot controlling system	Hydraulic sensing prior controlling
Engine	Cummins 4BT3.9-C100
Rated power	75Kw / 2400rpm
Min. fuel consumption	305g / kw.h
Max. (peak) torque	337n.m
Displacement	5.05L
Axles	Front drive device type
Axles	Rear wheel reduction type
Tire	17.5/25
Pressure	0.22Mpa
Overall dimension	756522402830mm
Operation weight	8260kg

Competitive Advantage:

Have strong design team, experience engineers supply good service;
The quality is reliable, the appearance looks modern and fashion;
Reasonable price.
