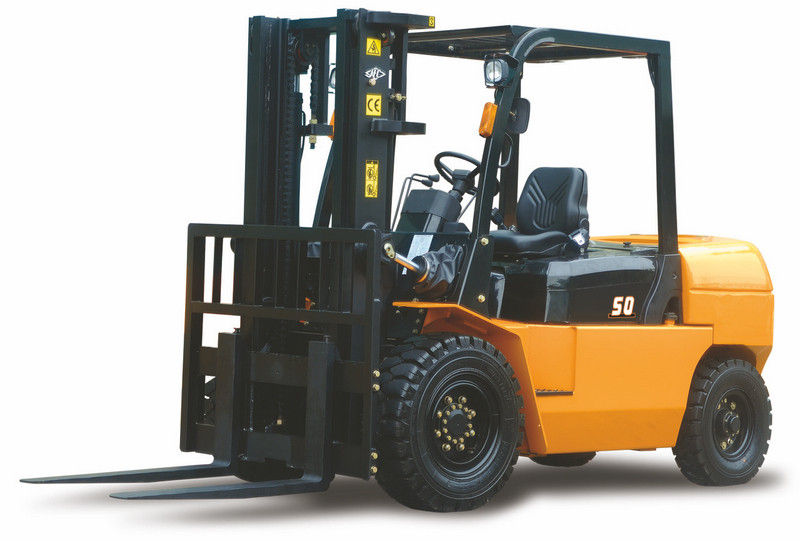

5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling

Good Quality Diesel Forklift Truck on sale
Good Quality Electric Forklift Truck on sale
The forklift looks fashion with satisfied performance, low noise, low consumption, strong power, Shengyuan is reliable supplier.

—— David (Slovenia)

Matar Factory bought machine from Shengyuan in 2010, until now the machine works in good condition, nothing broken to stop the machine.

—— Mr. Abdullah ( Vietnam)

I'm Online Chat Now

5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling

5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling supplier 5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling supplier 5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling supplier

Large Image :  5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling

Product Details:

Place of Origin:China
Brand Name:Hangcha (HC)
Certification:CE, EPA
Model Number:CPCD50

Payment & Shipping Terms:

Minimum Order Quantity:1 unit
Price:negotiation
Packaging Details:Nude package
Delivery Time:30-40 days
Payment Terms:30% T/T in advance, 70% balance paid against copy of B/L
Supply Ability:60000 units/year
Detailed Product Description
Brand: Hangcha Load Center: 600mm
Rated Capacity: 5.0 Ton Power Souce: Diesel Engine
Function: Loading, Moving Cargo, Select/Picking Name: Diesel Forklift Truck, Fork Truck





5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling





Quick Detail:



1,  Diesel forklift truck, Diesel power forklift

2,   Material Handling, loading & unloading cargo, moving cargo in pallets

3,  5000kg rated capacity, 3000mm lifting height, 500mm load center

4.  China / Perkins / NISSAN (UD) engine available

5.  China transmission available

6. Options: sideshifter, solid tire, mast, cabin



Description:



The new R series 5.0 ton internal combustion counterbalance forklift truck is ergonomically designed, providing high working efficiency, as well as reliable and durable operation. Designed with long wheelbase, the whole vehicle achieves better longitudinal stability and residual capacity at the same lifting height than the former model. This also helps to prolong the working time of rear wheel because of the reduced rear axle’s load.

Our internal combustion counterbalance forklift truck is powered by environment friendly engines, with the exhaust emissions conforming to related regulations and the noise level complying with EU standards. In addition, it is provided with a spacious cab with low vibration, little noise, and clean air. Hence, the truck is ideal for places with high health and safety standards.

With the adopted common automotive cab layout, the operator requires no special training. The cab also provides both of mental and physical driving comfort, so as to ensure minimal load damage and accident over an arduous 8-hour shift. In addition, the forklift truck can be easily maintained by experienced mechanical engineers due to its simple design, thus ensuring reduced downtime.



Standard configuration:

3m 2-stage mast

Pneumatic tire

Front lighting system

Back up alarm

Rear view mirror

Seat with belt

1070mm fork





Applications:



Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.





Specifications:



Model



CPCD40

CPCD45

CPCD50

Power type



Diesel

Rated capacity

Kg

4000

4500

5000

Load center

mm

500

500

500

Lift height

mm

3000

3000

3000

Length to face of fork

mm

3070

3110

3215

Overall width

mm

1395

1490

1490

Mast lowed height

mm

2245

2245

2245

Mast extended height

mm

4170

4170

4365

Overhead guard height

mm

2050

2050

2050

Turning radius (outside)

mm

2690

2720

2810

Wheelbase

mm

2000

2000

2100

Self weight

Kg

6300

6500

6850



  Spec.

Type





Engine

Transmission

Power

Manufacture

Model

Rated output / r.p.m. (Kw)

Rated torque / r.p.m. (N.m)

Emission STD

Manufacture

RXG24

Diesel

China

LR4108

57/2200

285/1400



China

powershift

RXW5

Diesel

Cummins

B3.3T

60/2200

292/1600

Stage 2

/ Tier 2

China

powershift

RXW19

Diesel

NISSAN

TD42

59/2300

254/1800



China

powershift

RXW35

Diesel

Perkins

1104D-44

56/2200

265/1700

Stage 3

China

powershift



5 Ton Hangcha Diesel Forklift Truck Selecting / Picking Material Handling

Competitive Advantage:



  1. Have strong design team, experience engineers supply good service;
  2. The quality is reliable, the appearance looks modern and fashion;
  3. Both of Chinese and imported engine are available for different requirement, with CE & EPA certificate;
  4. One year(2000 hours) quality warranty, all kinds of spare parts are available.
