Detailed Product Description
| Operation Mass: |
18000kg |
Product Name: |
Vibratory Road Roller |
| Steering: |
Hydraulic Steering |
Type: |
Single Drum Roller |
| Use For: |
High-grade Highways, Railways |
Engine Type: |
China / Cummins Diesel Engine |

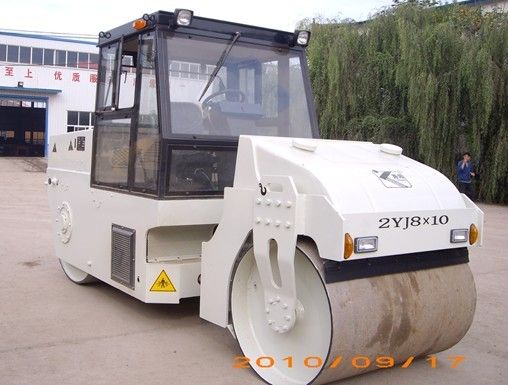

Railways Vibratory Road Roller Pneumatic Tire Compactor Cummins Diesel Engine
Quick Detail:
1, road roller, pavement roller, road leveling machine
2, For high-grade highways, railways, airport runways, dams and other large projects fill compaction
3, 18000kg operation mass
Description:
Main Features:
Hydraulic vibration, great centrifugal force and high-density compaction;
Hydraulic drivel, with rear axle;
Articulated frame, hydraulic steering, small turning radius;
Full anti-corrosive sprinkler system, large capacity water tank, electric pressurized sprinkler, unique nozzle design covering all of the steel drum and pneumatic tire;
Two sets of brake system , middle position stop and immediately brake assure the machine safety and dependability;
Applications:
For high-grade highways, railways, airport runways, dams and other large projects fill compaction, has a good plateau (altitude 3500m) job performance; may be compacted sand, semi-viscous and sticky soil exciting force large, affecting depth of one meter or more. Hydrostatic mechanical roller gravity itself, so that permanent deformation is compacted layer and dense. Is divided into two types of steel wheel and tire type.
Competitive Advantage:
- Have strong design team, experience engineers supply good service;
- The quality is reliable, the appearance looks modern and fashion;
- Reasonable price.
Specifications:
|
Standard configuration
|
|
Model
|
Engine
|
other
|
|
LT216B
LT218B
|
YC6B150
|
1.Mechanical driving, hydraulic vibrating, double amplitude, hydraulic steering
|
|
2.Special gear box and driving axle for road roller
|
|
3.Adopt joint venture's gear pump and motor
|
|
4.With protective glass and air conditioning cab with protective tipping gear.
|
|
Optional configuration
|
|
|
Model
|
Engine
|
other
|
|
LT216B
LT218B
|
cummins 6BT5.9
|
1.Air condition cab
2.Puddlability random survey meter;
|
|
configuration
|
|
|
Model
|
Engine
|
other
|
|
LT214
|
YC6B120
|
1.Mechanical driving, hydraulic vibrating, double amplitude, hydraulic steering
|
|
2.Special gear box and driving axle for road roller
|
|
3.Adopt joint venture's gear pump and motor
|
|
4.With protective glass and cab with protective tipping gear.
|
|
Optional configuration
|
|
|
Model
|
Engine
|
other
|
|
LT214
|
cummins6BT5.9
shangchaiSC5D130
|
1.Air condition cab
2.Puddlability random survey meter;
|
|
(Main Technical Parameters)
|
|
MODEL
|
|
LT218B
|
LT216B
|
LT214
|
|
Operating mass
|
kg
|
18000
|
16000
|
14000
|
|
Static linear load
|
N/cm
|
415
|
378
|
342
|
|
Vibration frequency
|
HZ
|
30
|
30
|
30
|
|
Vibration amplitude
|
Mm
|
2.0/1.0
|
2.0/1.0
|
1.8/0.9
|
|
Centrifugal force
|
KN
|
340/200
|
320/180
|
290/160
|
|
Travel speed
|
|
|
|
|
|
1st gear
|
|
2.0
|
2.0
|
2.0
|
|
2nd gear
|
|
4.0
|
4.0
|
4.0
|
|
3rd gear
|
|
10.5
|
10.5
|
10.5
|
|
Grade ability
|
%
|
35
|
35
|
35
|
|
Turning angle
|
°
|
35
|
35
|
35
|
|
Ground clearance
|
mm
|
432
|
432
|
432
|
|
Electrical voltage
|
V
|
24
|
24
|
24
|
|
Turning radius
|
mm
|
7000
|
7000
|
7000
|
|
Vertical oscillation
|
°
|
8
|
8
|
8
|
|
Tire size
|
|
23.1-26
|
23.1-26
|
23.1-26
|
|
Overall length
|
mm
|
5930
|
5860
|
5860
|
|
Overall width
|
mm
|
2300
|
2280
|
2350
|
|
Overall height
|
mm
|
3020
|
3020
|
3100
|
|
Vibration round width
|
mm
|
2100
|
2100
|
2100
|
|
Drum diameter
|
mm
|
1600
|
1600
|
1600
|
|
Drum thickness
|
mm
|
40
|
32
|
24
|
|
Wheelbase
|
mm
|
3160
|
3160
|
3160
|
|
Diesel model
|
|
YC6B150
|
YC6B150
|
YC6B120
|
|
Diesel power
|
kw
|
110
|
110
|
88
|
|
Diesel speed
|
r/min
|
2000
|
2000
|
2000
|
|
Fuel tank capacity
|
L
|
180
|
180
|
180
|
|
Hydraulic capacity
|
L
|
150
|
150
|
150
|
