Detailed Product Description
| Brand: |
Hangcha |
Color: |
Red |
| Load Center: |
500mm |
Rated Capacity: |
2.5 Ton |
| Power Souce: |
Diesel Engine |
Application: |
Port, Factory, Cabin, Car |
| Function: |
Loading, Unloading, Moving Cargo |
Name: |
Diesel Forklift Truck, Fork Truck |

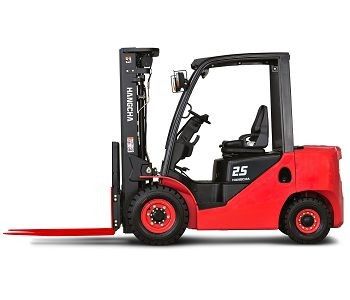

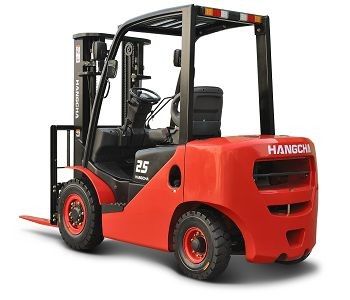

Cabin Stacking Diesel Forklift Truck 2.5 Ton 500mm Load Center
Quick Detail:
1, Diesel forklift truck, Diesel power forklift
2, Material Handling, loading & unloading cargo, moving cargo in pallets
3, 2500kg rated capacity, 3000mm lifting height, 500mm load center
4. ISUZU / Yanmar / China engine available
5. China / Okramura / MS transmission available
Description:
Hangcha new XF series 1.0-3.5T internal combustion counterbalance forklift truck is manufactured by combining Hangcha’s manufacturing experience and the latest production technology. It can use diesel, gasoline and LPG as the fuel, with dual-fuel also available. In addition, this series of products all have a load center of 500mm, which means that the distance from the center of gravity of the load to the front face of the fork shank is 500mm.
Standard configuration:
3m 2-stage mast
Pneumatic tire
Front lighting system
Back up alarm
Rear view mirror
Seat with belt
1070mm fork
Applications:
Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.
Specifications:
|
Model
|
|
CPCD20
|
CPCD25
|
|
Power type
|
|
Diesel
|
|
Rated capacity
|
Kg
|
2000
|
2500
|
|
Load center
|
mm
|
500
|
500
|
|
Lift height
|
mm
|
3000
|
3000
|
|
Length to face of fork
|
mm
|
2530
|
2605
|
|
Overall width
|
mm
|
1155
|
1155
|
|
Mast lowed height
|
mm
|
2035
|
2035
|
|
Mast extended height
|
mm
|
4045
|
4045
|
|
Overhead guard height
|
mm
|
2135
|
2135
|
|
Turning radius (outside)
|
mm
|
2180
|
2245
|
|
Wheelbase
|
mm
|
1650
|
1650
|
|
Self weight
|
Kg
|
3405
|
3765
|
|
Spec.
Type
|
|
|
Engine
|
Transmission
|
|
Power
|
Manufacture
|
Model
|
Rated output / r.p.m. (Kw)
|
Rated torque / r.p.m. (N.m)
|
Emission STD
|
Manufacture
|
|
XW27F
|
Diesel
|
XINCHAI
|
A498BT1
|
36.8/2400
|
186/1700
|
E-MARK 3
|
China powershift
|
|
XW10F
|
Diesel
|
ISUZU
|
C240PKJ-30
|
34.5/2500
|
137.7/1800
|
Stage 3A
|
China powershift
|
|
XW10B
|
Diesel
|
ISUZU
|
C240PKJ-30
|
34.5/2500
|
137.7/1800
|
Stage 3A
|
Okamura
|
|
XW32F
|
Diesel
|
YANMAR
|
4TNE92
|
32.8/2450
|
149.4/1600
|
Stage 3A / Tier 3
|
China powershift
|
|
RW33F
|
Diesel
|
YANMAR
|
4TNE98
|
44.3/2300
|
206/1700
|
Stage 3A / Tier 3
|
China powershift
|
|
RW33M
|
Diesel
|
YANMAR
|
4TNE98
|
44.3/2300
|
206/1700
|
Stage 3A / Tier 3
|
MS
|
|
RW33B
|
Diesel
|
YANMAR
|
4TNE98
|
44.3/2300
|
206/1700
|
Stage 3A / Tier 3
|
Okamura
|
Competitive Advantage:
-
Have strong design team, experience engineers supply good service;
-
The quality is reliable, the appearance looks modern and fashion;
-
Both of Chinese and imported engine are available for different requirement, with CE & EPA certificate;
-
One year(2000 hours) quality warranty, all kinds of spare parts are available.
